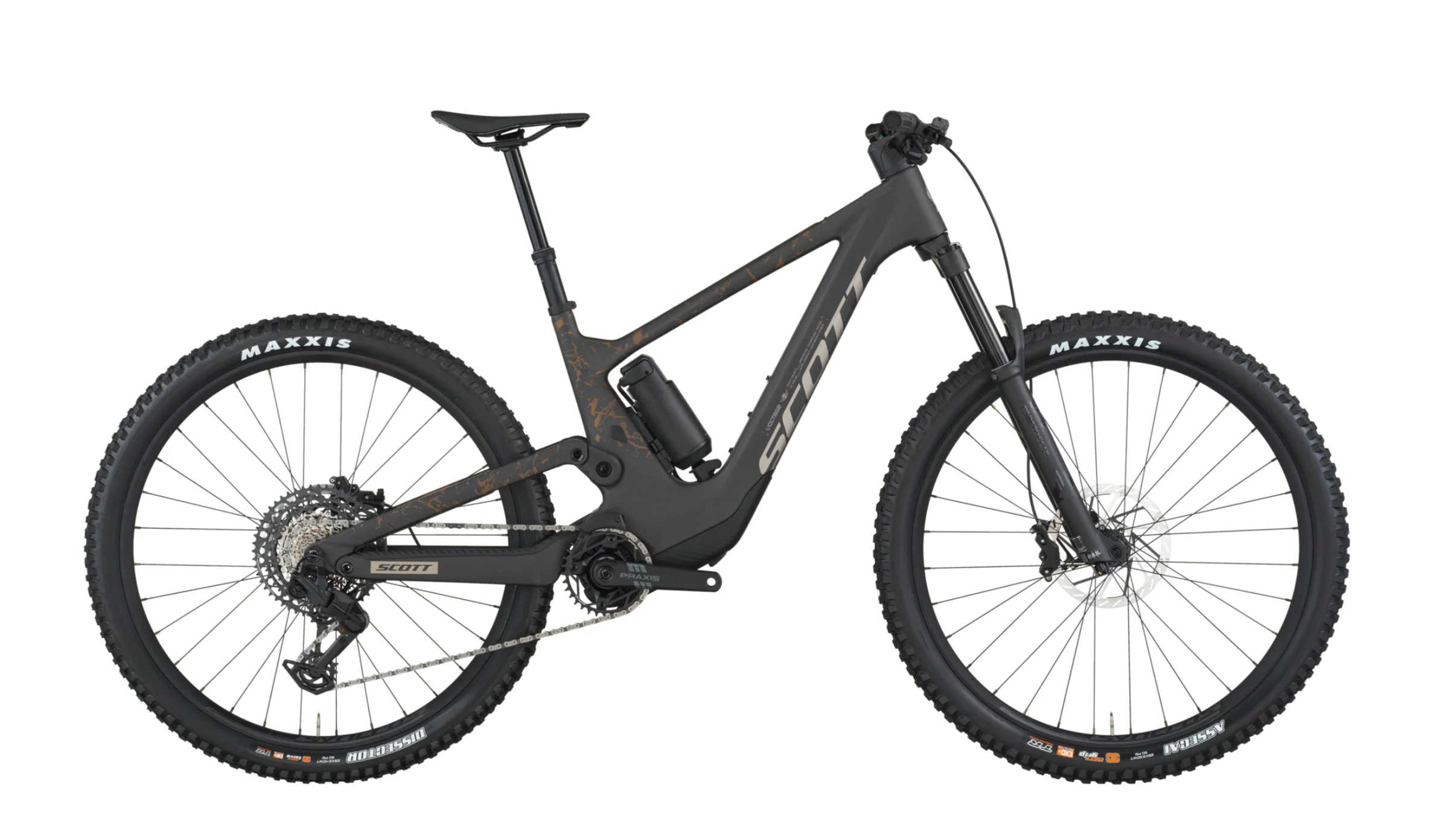

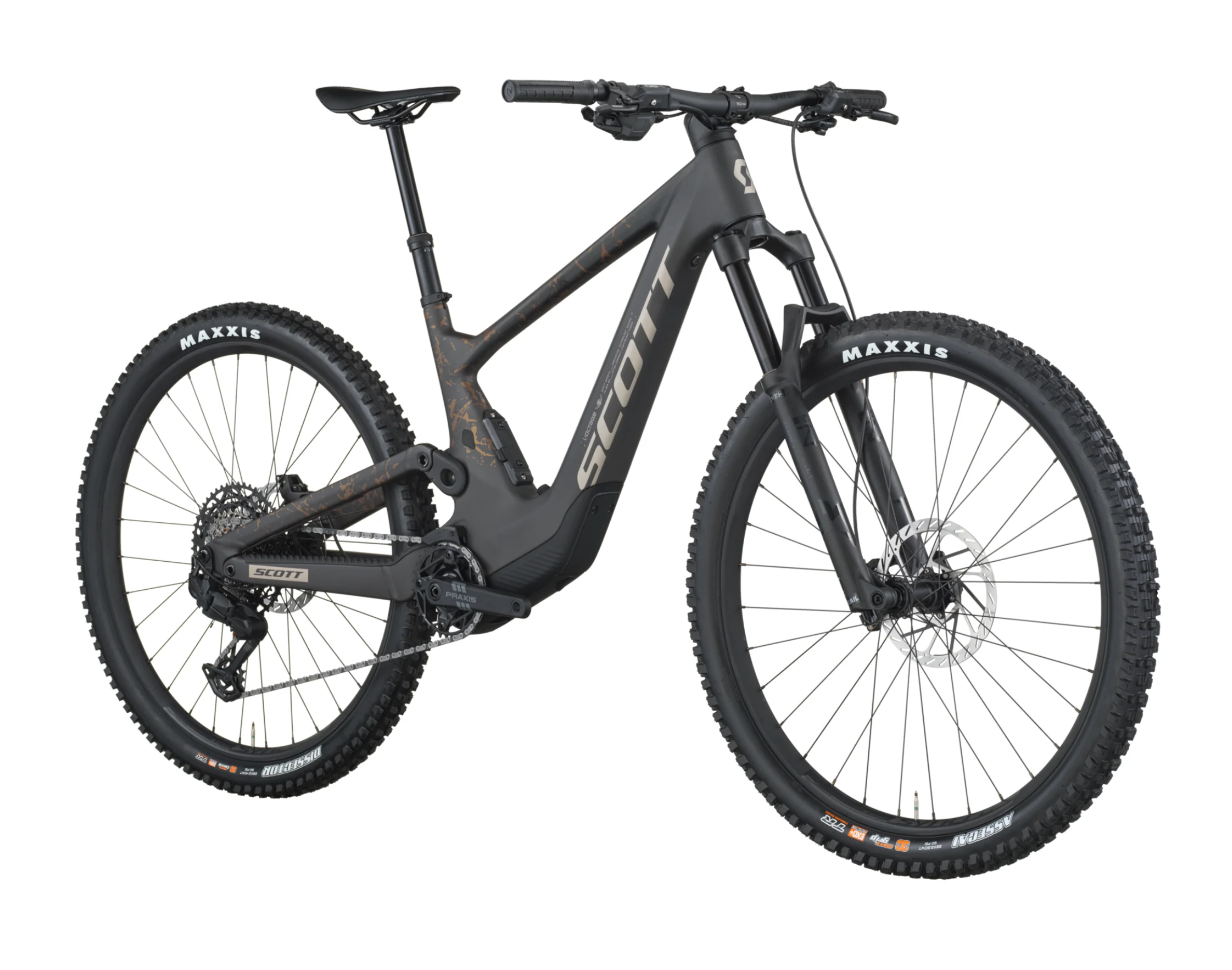

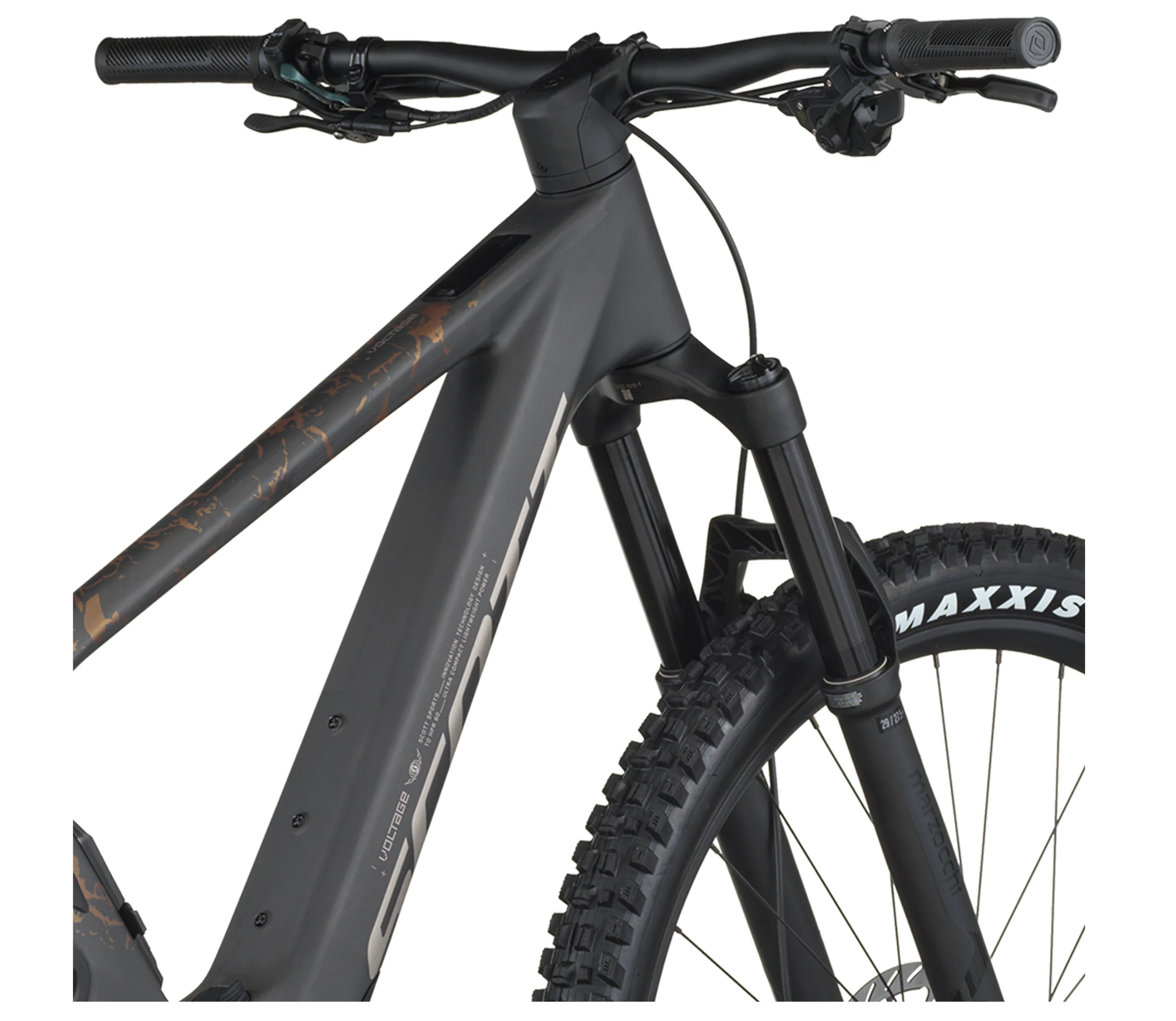

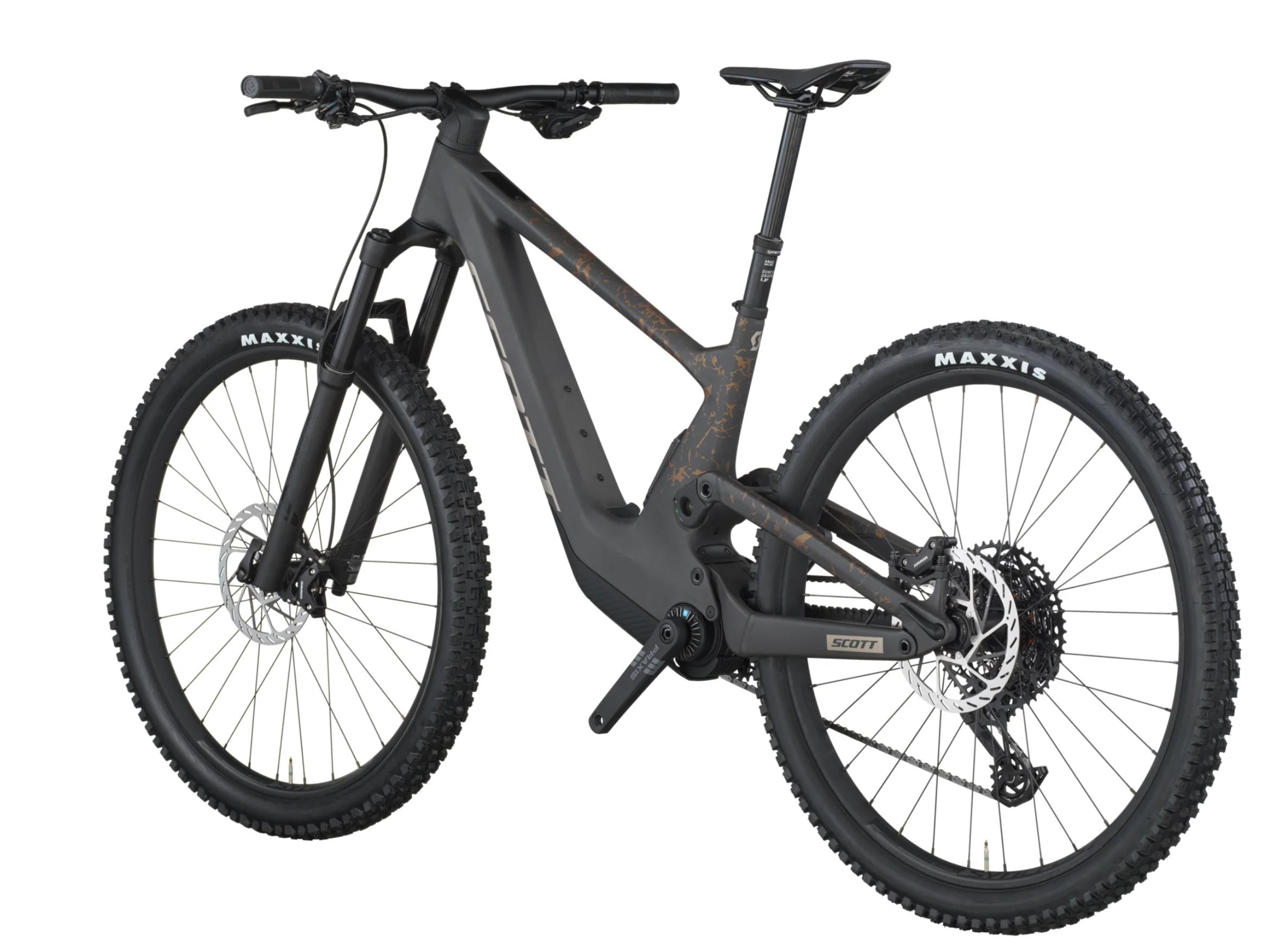

Scott Voltage 920 Electric Full Suspension Mountain Bike - Carbon Black Crackle Bronze

Scott Voltage 920 Electric Full Suspension Mountain Bike

Voltage 920 is our long-travel e-MTB with a carbon front and alloy rear triangle for riders who want all the heart-pumping excitement of a top-tier trail bike without the top-tier price tag. With its lightweight design, 160mm front and 155mm rear travel suspension, and an updated, high-performance motor unit, Voltage 920 is the ideal big riding, epic sending, e-rig that handles its own shuttle laps.

Power is boosted to 60Nm compared to the 50Nm on the previous Voltage thanks to TQ’s new HPR60 motor, which leaves you feeling like there’s no switchback too tight and no obstacle is too challenging. Range is also upgraded also with an included Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It’s the assist you need to enjoy bigger days on the trails, and it’s small enough to pack if you want to have it along on any given ride.

Our NUDE Suspension technology with the X-Fusion NUDE shock that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up.

This Voltage also comes with SRAM’s Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.

Scott Voltage 920 Electric Full Suspension Mountain Bike Specification:

Frame:Carbon HMF Main Frame, Alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
Fork:Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer, 44mm offset, Reb. Adj., Lockout, 150mm travel
Rear Shock:X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 155-100-Lockout, T185X55mm
Rear Derailleur:SRAM Eagle 70 Transmission 12 Speed
Shift Levers:SRAM Eagle 70 Shifter
Front Brake:SRAM DB4 Stealth 4-Piston Disc
Rear Brake:SRAM DB4 Stealth 4-Piston Disc
Front Brake Disc:SRAM HS2 200mm
Rear Brake Disc:SRAM HS2 200mm
Front Wheel Rim:Syncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready
Rear Wheel Rim:Syncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready
Front Tyre:Maxxis Assegai, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra
Rear Tyre:Maxxis Dissector, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra
Front Hub:Formula CL-811, 15x110mm
Rear Hub:Formula CL-148S, 12x148mm
Spokes:Stainless Black 15G, 1.8mm
Handlebars:Syncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm
Stem:Syncros AM 2.0, Syncros Cable Integration System, 4° rise, 6061 Alloy, 31.8mm, 1 1/8"
Headset:Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Handlebar Grips:Syncros Endurance lock-on grips
Remote Lockout:SCOTT TracLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes
Saddle:Syncros Tofino 2.0 Regular
Seatpost:Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm, S size 140mm, M size 180mm, L size 180mm, XL size 210mm
Crankset:Praxis Alloy
Chain:SRAM CN Eagle 70 Transmission
Cassette:SRAM Eagle XS 1270 Transmission 10-52
Pedals:Not included
Motor:TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
Battery:TQ Internal 360Wh + TQ Range Extender 160Wh
Display:TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
Charger:TQ 100-240V-4A
