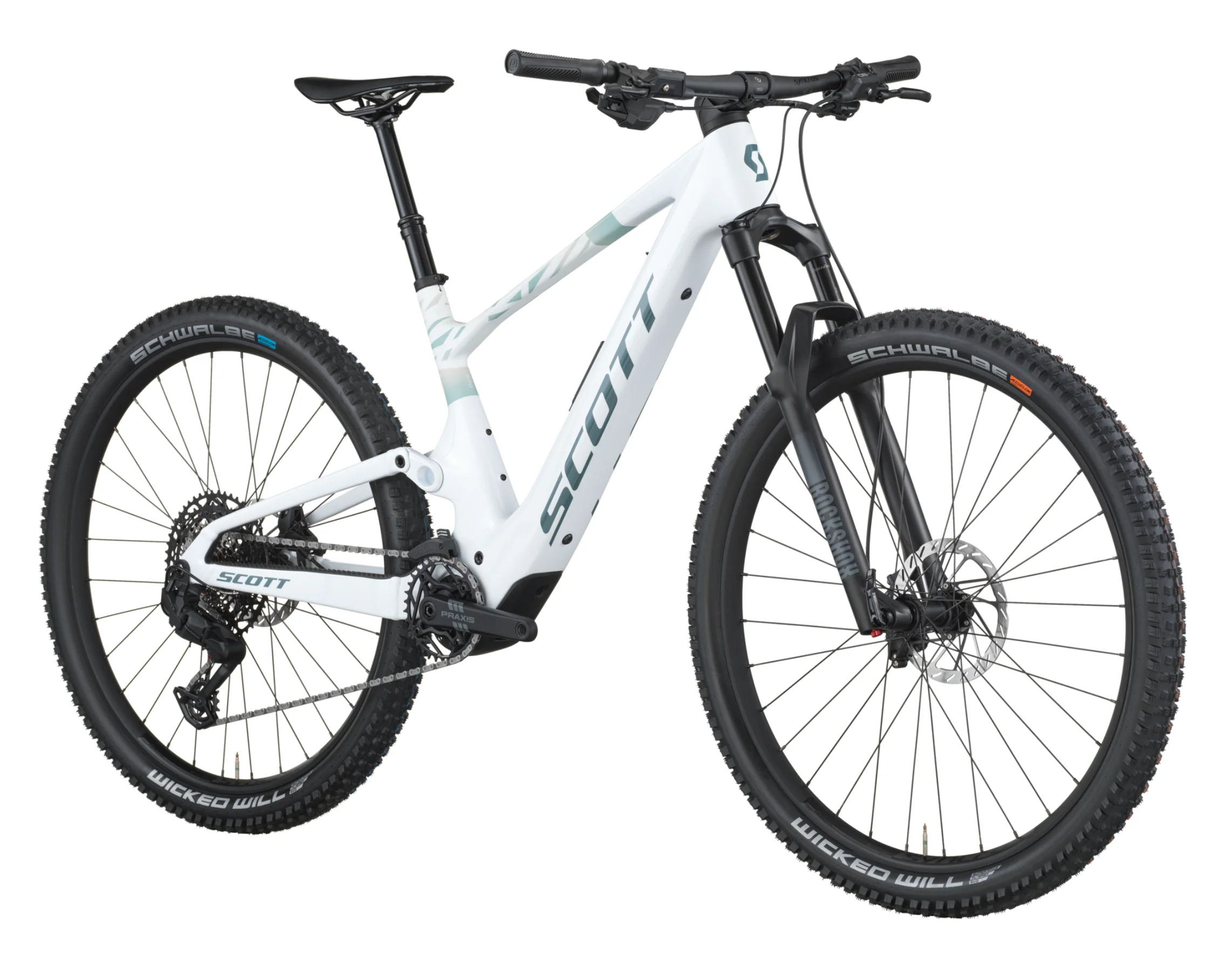

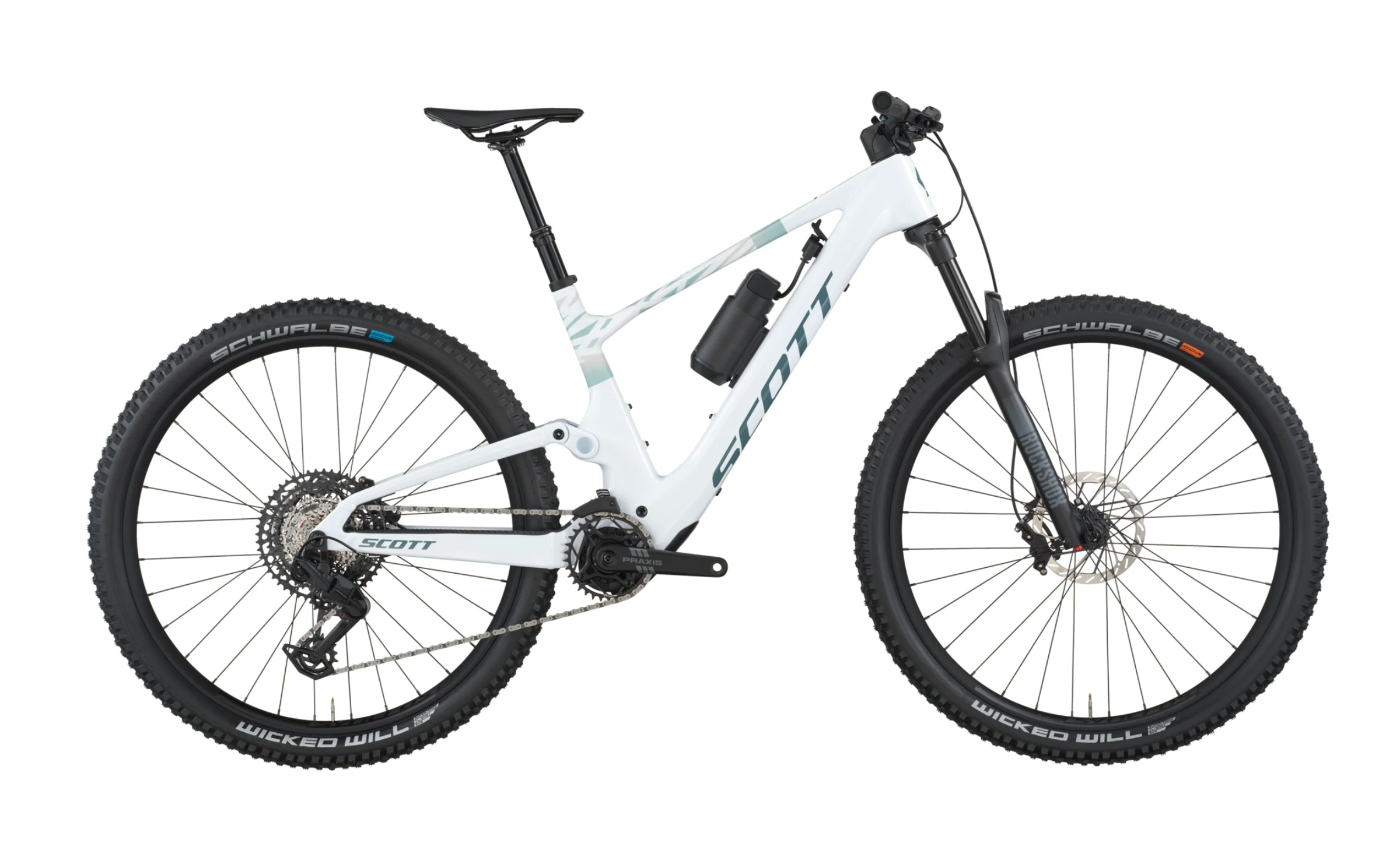

Scott Lumen 920 Electric Full Suspension Mountain Bike - White
Scott Lumen 920 Electric Full Suspension Mountain Bike
For the thrill of a lightweight eMTB in a build that won’t break the bank, the Lumen 920 is a must-have ride. With a carbon front and alloy rear triangle, it maintains the playful, agile, and responsive handling quality riders love about our full-carbon Lumens. With the new TQ HPR60 motor unit giving more torque than ever, you can wring out your best performances.
Scott Lumen 920 Electric Full Suspension Mountain Bike Specification:
Frame:Carbon HMF Main Frame, Alloy SST-CST, Integrated Suspension Technology, Flex Pivot, Adjustable head angle, Syncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline
Fork:RockShox Recon Gold RL Solo Air, 2-Modes / 15x110mm axle / tapered steerer, 42mm offset / Reb. Adj. / Lockout / 140mm trave
Rear Shock:X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 130-90-Lockout, T165X45mm
Rear Derailleur:SRAM Eagle 70 Transmission 12 Speed
Shift Levers:SRAM Eagle 70, TriggerShifter
Front Brake:SRAM DB4 Stealth 4-Piston Disc
Rear Brake:SRAM DB4 Stealth 4-Piston Disc
Front Brake Disc:SRAM HS2 CL Rotors, 180mm
Rear Brake Disc:SRAM HS2 CL Rotors, 180mm
Front Wheel Rim:Alexrims X-30S, 32H, 30mm, Tubeless ready
Rear Wheel Rim:Alexrims X-30S, 32H, 30mm, Tubeless ready
Front Tyre:Schwalbe Wicked Will 29x2.4" EVO, Super Race, TLE, 67EPI, Addix Speed Soft
Rear Tyre:Schwalbe Wicked Will 29x2.4" EVO, Super Race, TLE, 67EPI, Addix Speed Grip
Front Hub:Formula CL-811, 15x110mm
Rear Hub:Formula CL-148S, 12x148mm
Spokes:Stainless Black 15G, 1.8mm
Handlebars:Syncros Fraser 2.0 DC Alloy 6061 D.B., mini Rise, back sweep 8°, 760mm
Stem:Syncros DC 2.0, Syncros Cable Integration System, 0° rise, 6061 Alloy, 31.8mm, 1 1/8"
Headset:Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Handlebar Grips:Syncros Performance XC lock-on grips
Remote Lockout:SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes
Saddle:Syncros Tofino 2.0 Regular, CRMO rails
Seatpost:Syncros Duncan Dropper Post 2.0, 31.6mm, S & M size 125mm, L size 150mm, XL size 170mm
Crankset:Praxis Alloy
Chain:SRAM Eagle 70 Transmission
Cassette:SRAM Eagle XS 1270 Transmission 10-52
Pedals:Not Included
Motor:TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
Battery:TQ Internal 360Wh + Range Extender 160Wh
Display:TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
Charger:TQ 100-240V-4A
